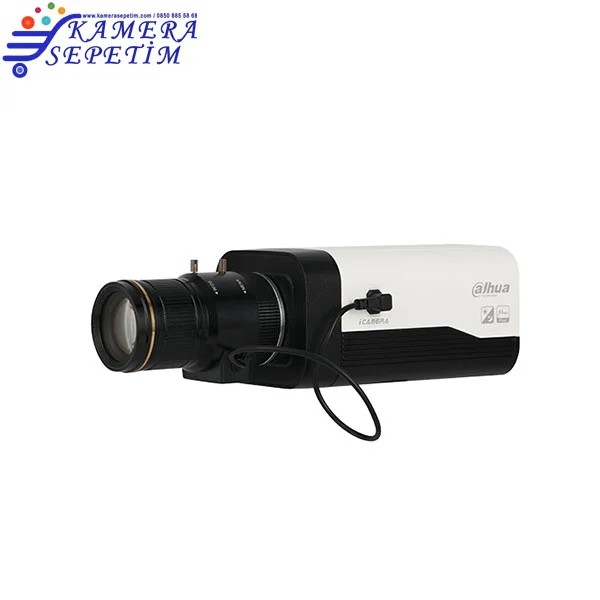

Dahua IPC-HF7842F 8MP BOX WizMind IP Kamera

> 8MP, 1/1.8″ CMOS image sensor, low illuminance, high image definition
> Max outputs 8MP (3840×2160) @25fps/30fps
> H.264&H.265 coding, high compression ration
> Wide dynamic, day/ night, 3D NR, AWB, HLC, BLC
> ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> With deep learning algorithm, it supports people counting, face detec tion, perimeter protection etc
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G SD card
> 24V AC/PoE/12V DC power support
> Five streams for three-channel HD video
> 12V DC power output, max. current 165mA , easy for installation

Camera
Image Sensor 1/1.8” 8Megapixel progressive CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 Lux@F1.5 (Color, 30IRE)
0.0005 Lux@F1.5 (B/W, 30IRE)
S/N Ratio > 56 dB
Lens
Mount Type C/CS
Smart event
IVS Abandoned object, moving object
Professional, intelligent
IVS (Perimeter Protection) Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.
Face Detection Face detection, track, priority, snapshot,Upload Optimized snapshot picture; face
enhancement, face exposure, face attribute extract,
6 attributes and 8 expressions: Gender, age, glasses,
expressions (anger, sadness, disgust, fear, surprise,
calm, happiness and confusion), Mouth mask, beard; Face matting setting: face, single inch photo Three snapshot;
methods: real-time snapshot, priority snapshot, quality priority;
Face angle filter Priority time setting;
Support Duration Optimal,Non-living Filtering;
ANPR ANPR, track, priority, snapshot
Vehicle attributes: license plate, vehicle type, vehicle color,vehicle brand
Other attributes: sun visor, seat belt, smoking, phoning, in-car accessories, annual vehicle inspection mark
Video Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
People Counting Support tripwire number counting, people counting in area, and displaying and outputting yearly/monthly/daily reports.Support queue management, and displaying and outputting monthly/daily reports.Support 4 tripwire rules configuration, people counting in 4 areas, and 4 queue management functions
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265, H.264, H.264H, H.264B, MJPEG(only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main Stream: 3840 × 2160 (1–25/30 fps)
Sub stream: 704 × 576 (1–25fps);704 × 480 (1–30fps)
Third stream: 1920 × 1080 (1–25/30 fps)
Fourth stream: 1920 × 1080 (1–25/30 fps)
Fifth stream: 704 × 576 (1–25fps);704 × 480 (1–30fps)
Stream Capability 5 streams
Resolution 8M (3840 × 2160), 6M (3072 × 2048/3072 × 1728), 5M (2592 × 1944), 4M (2688 × 1520), 3M(2048 × 1536/2304 × 1296), 1080p (1920 ×1 080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–16384 kbps
H.265: 12 kbps–16384 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Electronic Image Stabilization (EIS) Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution or below.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people counting exception detection; safety exception, Queue Management
Network
Network RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P;RTMP
User/Host 20 (Total bandwidth: 160M)
Storage FTP; Micro SD card (256 G); NAS; SFTP
Browser IE: IE9 and later
Chrome: Chrome 42 and later
Firefox: Firefox 48.0.2 and later
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS, Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-485 1 (baud rate range: 1200 bps-115200 bps)
Audio Input 2 channels (3.5mm JACK port)
Audio Output 1 channel (3.5mm JACK port)
Alarm Input 2 channel In: 5mA 5V DC
2 channel Out: 1000mA 30V DC/500mA 50V AC
Alarm Output
Power
Power Supply 12V DC/24V AC/PoE+ (802.3at); ePoE
Power Consumption Basic power consumption: 6.5W (12V DC); 5.7W(24V AC); 5.5W (PoE)
Max. power consumption (ICR + WDR + Power Output + ABF): 14.4W (12V DC); 14W(24V AC); 13.6W (PoE)
Environment
Operating Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage conditions –30°C to +60°C (–22°F to +140°F)
Structure
Casing Metal
Dimensions 86 mm × 74 mm × 150 mm (3.39″ × 2.91″ × 5.91″)
(L × W × H)
Net Weight 800 g (1.76 lb)
Gross Weight 900 g (1.98 lb)
