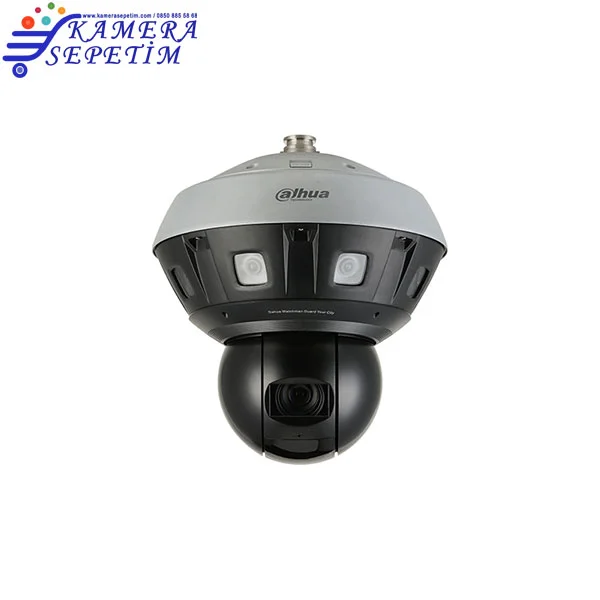

Dahua PSDW81642M-A3608x 2MP Multi-Sensor Panoramic IP Kamera+PTZ Kamera

Panoramic: Eight 1/1.8” 2 Megapixel progressive scan CMOS
> PTZ: One 1/1.8” 4 Megapixel progressive scan CMOS
> Support 360-degree panoramic view
> Starlight technology
> H.265/H.264 triple-stream encoding
> Day/Night (ICR); 3D DNR; AWB; AGC; BLC
> IR distance up to 400 m
> Smart tracking
> Tripwire
> Intrusion
> Crowd map

Camera
Image sensor Panoramic network camera: 1/1.8”CMOS PTZ camera: 1/1.8”CMOS
Max. resolution Panoramic network camera: 8192 × 1800
PTZ camera: 2560 × 1440
Scan Progressive
Electronic shutter Panoramic network camera: 1/3 s-1/100000 s, manual or auto adjust
PTZ Camera: 1/1 s-1/300000 s, manual or auto adjust
Minimum illumination Panoramic network camera:
0.01 Lux @ F2.0
PTZ camera:
0. 0008 Lux @ F1.3
Max fill light distance Panoramic network camera: None PTZ camera: ≥ 400 m (1312 ft) (IR fill light)
Fill light control Auto
Fill light quantity Panoramic network camera：None PTZ camera: 7 (IR LEDs)
Lens angle range N/A
Lens
Lens type Panoramic network camera:
Fix focal PTZ camera: Electric zoom
Lens connector Panoramic network camera ：M12 PTZ camera: Core interface
Focal length Panoramic network camera 5 mm PTZ camera: 5.6mm–223mm, optical zoom (40 times)
Aperture Panoramic network camera: F2.0 PTZ camera: F1.3
Angle of view Panoramic network camera:Horizontal: 360° Vertical: 84° PTZ camera:Horizontal: 2°–61°
vertical: 1°-36°
Diagonal: 3°–68°
Optical zoom Panoramic network camera: None PTZ camera: 40 times
Aperture type Panoramic network camera: Fixed aperture PTZ camera: Auto aperture
Min photographic distance Panoramic network camera :1.2 m (3.94 ft)
PTZ camera: 0.5 m (1.64 ft)
DORI distance Detect Observe Reconize Identify
Panoramic network camera 53.3m
( 174.9ft ) 21.3m
( 69.9ft ) 10.7m
( 35.1ft ) 5.3m
( 17.4ft )
PTZ camera 2873.1m
( 9426.2ft ) 1149.2m
( 3770.3ft ) 574.6m
(1885.2ft) 287.3m
( 942.6ft )
Smart event
IVS analyze Intrusion, tripwire
Professional, Intelligent
Crowd map Crowd map, Global setup and No. in area
Video
Video encoding H.265; H.264; H.264H; H.264B; MJPEG
Intelligent code H.264
H.265
Video frame rate Main Stream : 8192 x 1800 (1-25fps-30fps)
Sub Stream : 3840 x 832 (1-25fps/30fps)
Third Stream : 4800x x 3840(1-25fps-30fps)
Decoding 3 streams
Resolution Panoramic Network Camera 8192 × 1800; 7680 × 1680; 5760 × 1264; 4800 × 3840; 4096 × 900; 3840 × 832; 3200 × 2560; 2560 × 560; 2048 × 452; 1600 × 1280
PTZ Camera 2560 × 1440; 2048 × 1536; 1920 × 1080; 1280 × 960
1280 × 720; 704 × 576; 704×480; 352 × 288; 352×240
Bit Rate Control Panoramic Network Camera : CBR/VBR
PTZ Camera : CBR/VBR
Video Bit Rate Panoramic Network Camera
H.264: 512 Kbps-42995 Kbps
H.265: 256 Kbps-26216 Kbps PTZ camera:
H.264: 184 Kbps-15104 Kbps
H.265: 110 Kbps-9216 Kbps
Day/Night ICR
Wide dynamic range 120dB
White Balance Panoramic network camera:Auto/Natural/street lamp/outdoor/manual/regional Custom
PTZ camera: Auto/indoor/outdoor/tracking/manual/sodium lamp/natural/street lamp
Gain Control Auto / Manual
Noise Reduction 3D DNR
Motion Detection Disable / Enable
Region of interest Panoramic network camera: yes (4 areas) PTZ camera: yes (4 areas)
Electronic Image Stabilization (EIS) Panoramic network camera : — PZT camera : YES
Smart IR Panoramic network camera: — PTZ camera: Yes (Adjusted by user.)
Defog Panoramic network camera: — PTZ camera: Yes
Digital Zoom Panoramic network camera: N/A PTZ camera: 16 times
Privacy Masking Panoramic network camera (Privacy masking): 4 areas PTZ camera (Privacy masking): 8 areas
Audio
Audio Encoding G.711Mu / G.711A / G.726 / AAC
Network
Ethernet One 10/100/1000 Mbps Ethernet Port
One 1000M fiber port (optional)
Network Protocol HTTP: TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE;
IPv4/IPv6; SNMP; QoS; UPnP; NTP
Third Party Access ONVIF (Profile G ) (CGI)
Scene self adaptational yes
Max user 20 Total bandwidth : 80M)
Storage SD card, FTP (SFTP), NAS (NFS/SMB)
Browser IE, Chrome, Firefox, Safari
Platform EVS, NVR, M70, DSS
Certification
Certification CE-LVD: EN60950-1
CE-EMC: Electronmagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No,60950-1-1-07
Port
RS-485 port One (bit rate : 1200 bps-115200bps)
Audio input 2 channels (connecting terminal)
Audio output 2 channels (connecting terminal)
Alarm input 3 channels (Wet contact, and it supports max potential 30V DC, 1 A/max potential 50V AC, current 0.5 A.)
Analog output 1 channel CVBS BNC port
Power
Power Supply DC36V
Power Consumption <84.4W
Environment
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Operating Humidity ≤95%
Storage temperature -40°C to +70°C (-40°F to +158°F)/Less than 95% RH
Protection grade IP66
Structure
Enclosure Metal + Plastic
Dimensions Φ383mm x 389.8mm (Φ1256.56ft x 1279.8ft)
Net Weight 14.7 kg (32.41 Ib)
Gross Weight 19.8 kg (43.65Ib)
