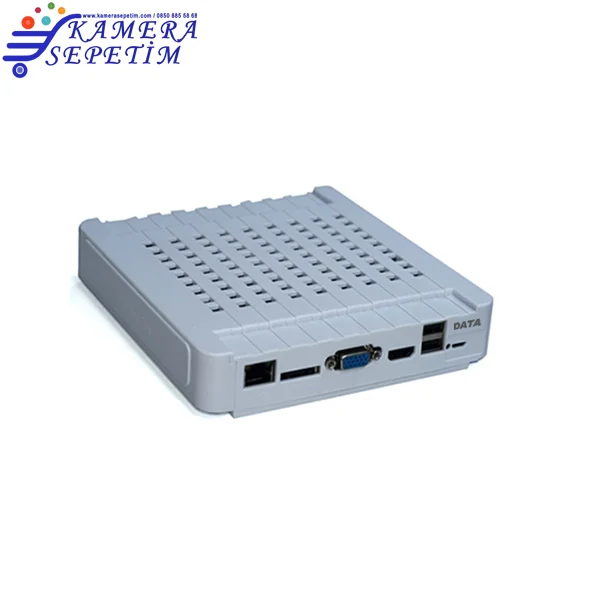

Data Güvenlik DTA-N6000-16EH 16 Kanal NVR Kayıt Cihazı

Data Güvenlik DTA-N6000-16EH 16 Kanal NVR Kayıt Cihazı

Model Number N6200-16eh
Operating System Embedded Lınux Operating System
Image Code Control Image Code Quality Adjustable, Variable Bitstream And Constant Bitstream Optional
Dual Stream Each Channel Can Set Main Stream And Sub Stream
Video Standard 1080p(1920×1080)30fps/960p/(1280×960)/720p(1280×720)30fps
Monitoring Image Quality 1080p(1920×1080) / 960p/(1280×960)/720p(1280×720)
Image Motion Detection Each Screen Can Set Multiple Detection Areas And Set 6-Level Sensitivity
Recording Playback Quality Any 9ch 960p Playback, 4ch 5mp/3mp/1080p Playback Simultaneously
Region Cover Every Channel Can Set 4 Cover Regions(Ipc Support)
Recording Mode Support Manual , Auto, Dynamic Detection, Alarm Trigger Record Mode(Partly Needs Ipc Support)
Backup Way Support U Disk, Usb Mobile Hdd, Usb Dvd-Rw. Network Storage And Backup
Operation Way Mouse, Remote Control, Front Panel
Local Login User Name And Password
Recording Storage Local Hdd, Network
External Ports Video Input ?16×(1920*1080)+Sub[960*576]+4ref.+4play 16ch 2.0mp Ip Camera
?16×(1280*960)+Sub[960*576]+4ref.+9play 16ch 1.3mp Ip Camera
?9×(2048*1536)+Sub[960*576]+4ref.+4play 9ch 3.0mp Ip Camera
?4×(2592*1944)+Sub[960*576]+4ref.+4play 4ch 5.0mp Ip Camera
Audio Input 16/9ch Network Audio İnput
Video Output 1ch Vga+1ch Hdmı
Network Port 1 Rj45,10m/100m/1000m Self-Adaptive Lan Port
Usb Port 2*Usb 2.0 Ports
Wireless Port 3g,Wıfı
Hdd Hdd Port 1*2,5”Hdd + 1*E-Sata Hdd Port
Max Capacity Each Port Supports Max 4tb Hdd
Mobile Surveillance Support( İphone, Windows Mobile, Blackberry, Symbian, Android) Smart Phone
Power Supply 5v2a
Power Consumption ?10w(Without Hdd)
Working Temperature -10?~+55?
Working Humidity 10%-90%
Dimension Equipment:162mm×162mm×35mm, Packing: 210mm×210mm×60mm
Weight(Without Hdd) N.W.:280g;With Packing:700g
Outside Carton 20 Pcs/Carton. 215mm×215mm×610mm; Weight:7kg
Installation Way Desktop Installation
