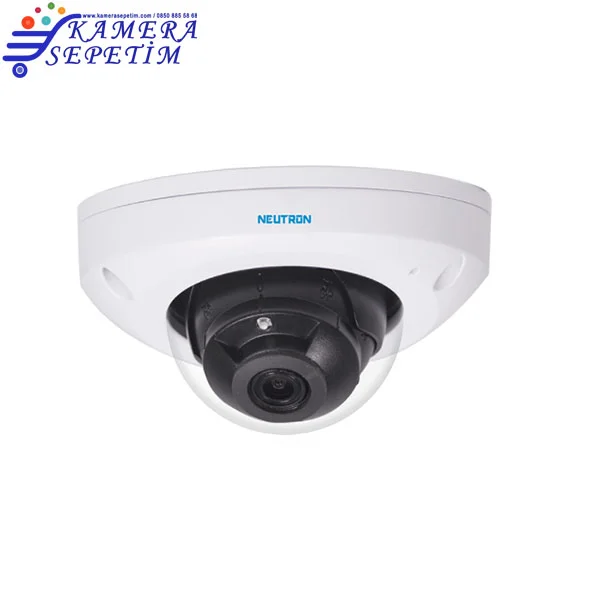

Neutron IPC314SR-DVPF28 4 Megapiksel Mini Dome IP Kamera

  • TL: 0,00 ₺

Paylaş:

Ürün Kodu: IPC314SR-DVPF28
Smart IR, up to 15 m (49 ft) IR distance
Up to 120 dB Optical WDR(Wide Dynamic Range)
Ultra 265, U-Code, H.265, H.264, MJPEG
ROI (Region of Interest)
IK10 vandal resistant, IP67

Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0 3.6mm@F2.0
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63 25.2 12.6 6.3
3.6 81 32.4 16.2 8.1
Angle of View (H) 104.4° 76.8°
Angle of View (V) 54.4° 44.1°
Angle of View (O) 135.7° 99.8°
Adjustment angle Pan: 0° ~ 90° Tilt: 0° ~ 65° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.03Lux (F2.0, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
S/N ≥55 dB
IR Range Up to 15m (49ft) IR range
wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping Support
HLC Support
BLC Support
Audio
Audio Compression G.711
Suppression Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, Up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O Audio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Dimensions (Ø x H) Φ110 x 61mm (Ø4.3” x 2.4”)
Net Weight 0.25kg (0.55lb)
Material Shield PC
Body metal
Bottom plate:metal
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection 2KV
Ingress Protection IP67
Vandal Resistant IK10
