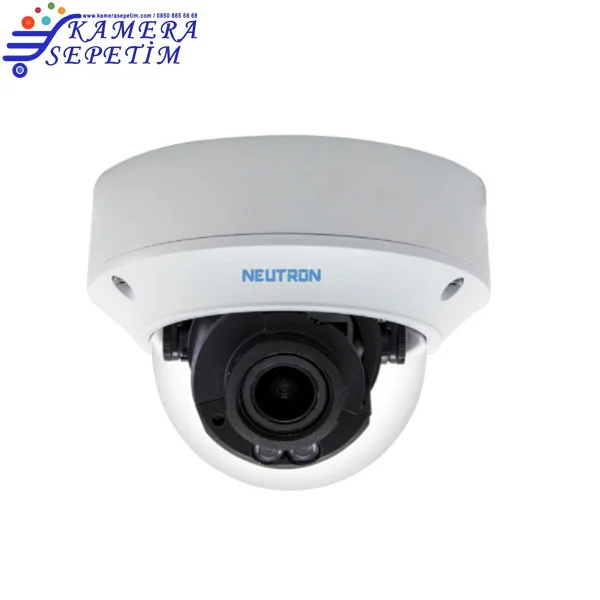

Neutron IPC3234SR-DV 4 Megapiksel Varifokal Dome IP Kamera

  • TL: 0,00 ₺

Paylaş:

Ürün Kodu: IPC3234SR-DV
1/3” 4 Megapiksel (2592X1520) Cmos Sensör
2592×1520 @ 20fps, 2048×1536 @ 30fps
2.8mm-12mm F1.4 Varifokal lens
Video Analiz
Ultra 265/H.265/H264/MJPEG sıkıstırma özelligi
120dB True WDR , Smart IR Teknolojisi
IP67, IK10 standartı destegi

Sensor 1/3″, progressive scan ,4.0 megapixel, CMOS
Lens 2.8~12mm@F1.4
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 63 25.2 12.6 6.3
12mm 270 108 54 27
Angle of View (H) 91.0°~27°
Angle of View (V) 54.4°~13.7°
Angle of View (O) 118.3°~33.2°
Adjustment angle Pan: 0°~360° Tilt: 0°~80° Rotate: 0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.005 Lux (F1.4, AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55 dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.264,MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:4MP (2592×1520): Max. 20 fps,4MP (2560×1440): Max. 25 fps,3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30fps
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection、Audio detection
Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S, Profile G, Profile T), API
Interface
Audio I/O Audio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 1/ 1
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power DC12V±25%, PoE (IEEE802.3 af)
Power consumption: Max 7.2 W
Dimensions (Ø x H) Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight 0.92 kg (2.0 lb)
Working Environment -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
