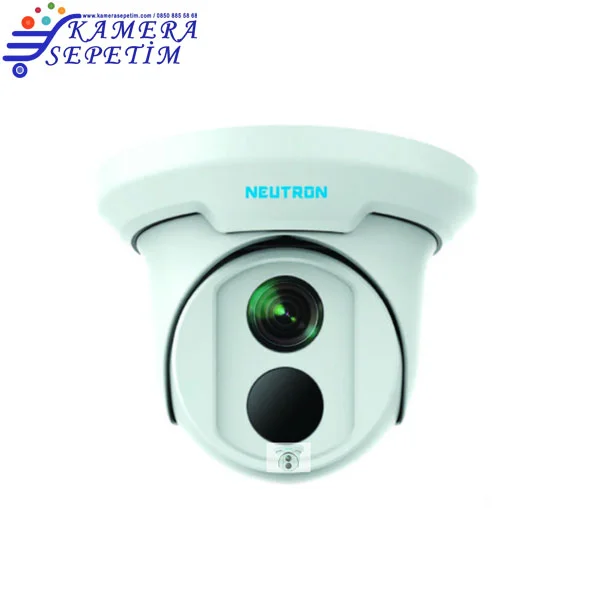

Neutron IPC3614SR3-DPF36 4 Megapiksel Dome IP Kamera

  • TL: 0,00 ₺

Paylaş:

Ürün Kodu: IPC3614SR3-DPF36
1/3” 4 Megapiksel (2592X1520) Cmos Sensör
2592×1520 @ 20fps, 2048×1536 @ 30fps
2.8mm@F2.0 sabit lens
Ultra 265/H.265/H264/MJPEG sıkıştırma özelliği
WDR , Smart IR Teknolojisi
IP67 standartı desteği

Sensor 1/3″, progressive scan,4.0 megapixel, CMOS
Lens 2.8mm@F2.0 3.6mm@F2.0 6mm@F2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 63 25.2 12.6 6.3
3.6mm 81 32.4 16.2 8.1
6mm 135 54 27 13.5
Angle of view(H) 104.4° 76.5° 49.9°
Angle of View (V) 67° 53.2° 32.9°
Angle of View (O) 135.7° 99.5° 61.4°
Adjustmentangle Pan: 0°~360° Tilt: 0°~90° Rotate:0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.03 Lux (F2.0, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
AWB(Auto white balance) Auto/manual
Gain Control Auto/manual
Video
Video Compression Ultra 265, H.264, MJPEG
Frame Rate Main Stream:4MP (2592×1520): Max. 20 fps,4MP (2560×1440): Max. 25 fps,3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30fps
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection、Audio detection
Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS
Compatible Integration ONVIF(Profile S), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5W
Dimensions (Ø x H) Φ126 x 94 mm (Ø5.0” x 3.7”)
Weight 0.33 kg (0.73lb)
Operating Conditions -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing)
Ingress Protection IP67
