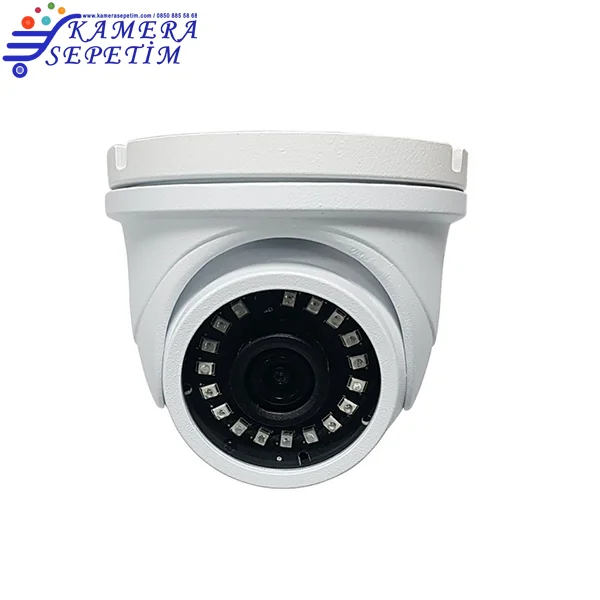

Opax OPAX-1312P 3MP IP POE Dome Kamera

  • TL: 0,00 ₺

Paylaş:

* 1/2.7 Ultral-Low-illumination Progressive Scan CMOS MSTAR SC4237
* 3MP HD resolution
* Embedded Web Server, support Internet Explore monitoring, configuration, upgrade
* Support sub domain, easily to implement DHCP (ADSL dial-up)
* Support the P2P on Android, IOS use DANALE app
* Support ONVIF2.6
* H.265+ / H.265 / H.264 main profile encoding, two simultaneous video streams
* Standard SDK(Linux,Windows), easily to be integrated with other digital systems

MODEL NO OPAX-1312P
BASIC PARAMETER
Image Sensor 3MP 1/2.9″ Sensor (S03)
Chipset 3516EV200+S03
Effective Pixels 3MP
Min. Illumination Color: 0Lux (Warm light on)
IR Distance 20-30M (14µ x 18PCS SMD LED)
Lens 4MP LENS M12 3.6mm F1.0 fixed lens
Noise Reduction 3D digital noise reduction
WDR Support WDR (D-WDR), >80db
BLC Support
Compression H.264, H.265
S/N Ratio ≥50db(AGC closed)
Image Settings Support for brightness, contrast, saturation, white balance, AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure); support privacy area; normal / 90° / 270° image rotation; Automatic, manual color to black and other switches
OSD Support OSD setting, drag the position freely
AUDIO / VIDEO ENCODING
Encoding Format H.265 Main Profile Encoding; H.264 Baseline / Main Profile / High Profile Encoding
Image Resolution Main Stream 2304×1296 ; 1920×1080
Sub Stream D1(704*576) / 360P(640*360 ) / CIF(352*288)
Frame rate 3MP(20fps 50HZ/60Hz), 2MP(25fps 50HZ/60Hz)
Video Bit Rate 32Kbps-8Mbps continuously adjustable, support CBR / VBR
Overlay Channel name, date time, steam info; position is adjustable.
DATA TRANSMISSION & STORAGE
Data Storage Video, Image
Storage Manual, automatic (cycle, timing, alarm switch, motion detection)
Alarm Data FTP, E-mail, Browser, Management software
Protocol HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS and etc.)
Access Standard ONVIF SDK
Access protocol Support ONVIF/private protocol/CGI
Client Browse Support IE9.0 and above browser, support 4 users concurrent access (MAX)
PORT
Network RJ45, 10M/100M network adaptive
Wifi NO
AUDIO
Audio G.711U
Input 1CH In
Output 1CH oUT
GENERAL
Operation T/H -20°C ~ 65°C / 0% – 90%
Waterproof IP66
Power Supply DC12V 2A
Power Consumption <10W
