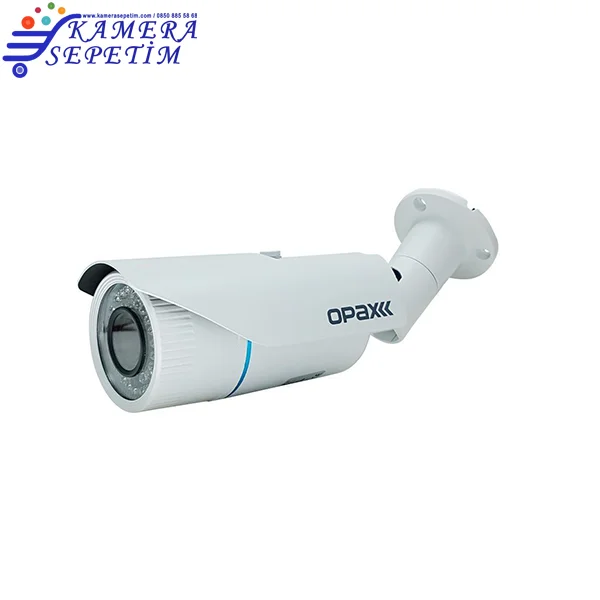

Opax OPAX-1925P 3MP IP+POE Bullet Kamera

  • TL: 0,00 ₺

OPAX-1925P 3 MP H.265+ 2304×1296 3.6mm 42 IR Led P2P POE IP Bullet Kamera

Paylaş:

* 1/2.7 Ultral-Low-illumination Progressive Scan CMOS MSTAR SC4237
* 3MP HD resolution
* Embedded Web Server, support Internet Explore monitoring, configuration, upgrade
* Support sub domain, easily to implement DHCP (ADSL dial-up)
* Support the P2P on Android, IOS use DANALE app
* Support ONVIF2.6
* H.265+ / H.265 / H.264 main profile encoding, two simultaneous video streams
* Standard SDK(Linux,Windows), easily to be integrated with other digital systems

Models OPAX-1925P
Models 3.0MP Ultra low-night HD Network Camera Module
Image Sensor 1/2.7” 3.0MP CMOS 317
Min. Illumination Color:0.01Lux
Solition SSC325+317
BLC 1-255 Arası Ayarlanabilir
HLC YES (1-255) Arası Ayarlanabilir
2DNR 1-255 Arası Ayarlanabilir
3DNR 1-255 Arası Ayarlanabilir
W/B MODE AUTO/MANUAL
FORCED ANTI FLICKER DISABLE /ENABLE
Horizon Flip DISABLE /ENABLE
Vertical Flip DISABLE /ENABLE
Defogging DISABLE /ENABLE
WDR MODE YES SUPPORT
IRCUT MODEL AUTO/TIMING/EXTERNAL/MANUAL
KEEP COLOR YES/ NO SEÇİLEBİLİR
LIGHT MODE Pure Infrared light / Pure White light /Open White Light When Infrared Triggered
Open Infrared Light When White Lifgt Triggered
LIGHT IMAGE OPTION Normal/Prevent Overeexposure/ Licence plate mode 1 to 6
LIGHTS OF SENSITIVITY 1-100 Ayarlanabilir
LIGHT BRIGHTNESS MODE Auto / Manual /BRIGHTNESS Restirected
LIGHT BRIGHTNESS %10 -%100
LED DELAY 0,001-1,5
HTTP Port 80 ( Ayarlanabilir)
Control Protocol 8091( Ayarlanabilir)
RTSP 554( Ayarlanabilir)
HIK PORT 8000 ( Ayarlanabilir)
P2P DANALE Destekler
Motion Detection Destekler
IO Input /Output Destekler (Günlük Haftalık program)
S/N Ratio ≥37dB
Encode Mode H.265+ / H.265 / H.264
Wide Dynamic Range Digital WDR
Digital noise Reduction DNR, 3DNR
Exposure Mode Auto/Manual/shutter mode(shutter range variable)
White Balance Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night Day / Night / External control(IR Cut Filter)
Video Compression H.265/H.264 Main Profile
Audio Compression G711U/G711A
Max. Image Resolution 2560*1440 at 20fps
Image Resolution Main stream 3MP at 25fps, 1080P/720P/D1 at 30fps
Sub-stream D1/VGA/640*360/CIF at 30fps
Streams Dual streams
Bitrate CBR/VBR, bitrate: 50Kbps~6Mbps variable
Simultaneous Live View Main stream Up to 5, Sub-stream Up to 5
OSD Support camera name, time display .etc, OSD position can be adjusted
Motion detect Support
IO Unsupport
POE Support
P2P Android, IOS
Protocols HTTP, NTP, DHCP, UDNP, RTSP, P2P, ONVIF
Onvif Onvif 2.6
Network 10/100M Base-TX Ethernet, RJ45 Connector
Store Unsupport
Protection Level TVS 6,000V lightning protection
Power Supply 12V DC at 0.7A
Dimensions Board 38x38mm Single board
Working Temperature -30°C ~85°C, Humidity ≤90%RH(Unsupport-condensing)
