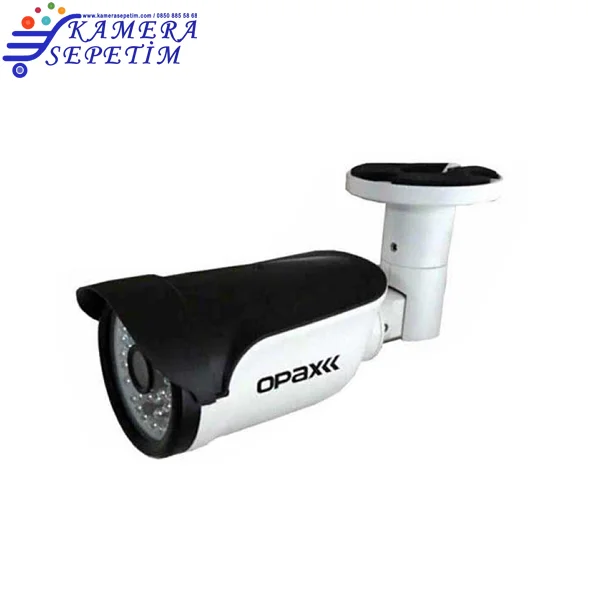

Opax OPAX-2250 5MP IP Bullet Kamera

  • TL: 0,00 ₺

Paylaş:

• 1/2.9” 5MP S03 sensor; MStar337DE+4230 16:9 widescreen display
• Support H264, H.265+
• Support dual stream. Main stream : 2592X1944 ,1920×1080; Sub-stream: D1(704*576)/ 360P(640*360 )/ CIF(352*288)
• Support WDR, 3D-NR, 2D- NR, BLC, HLC, Forced anti-ficker , Day Shutter mode, Night Shutter Mode, image mode ( superstarlıght mode,Defogging (smart)Auto-White balance for different environments
• Support ONVIF, can connect with other companys NVR ;
• ICR switching to surveille 24 hours
• Support image shutter, 4 Shutter areas can be set ;
• Support motion detection, motion detection alarm can be sent to email automatically
• Support OSD setting and network timing
• Support mobile surveillance(iOS, android),Web and VMS ;
• Support self-maintenance
• Support stepless IR, stepless white light mode

MODEL NO OPAX-2250
BASIC PARAMETER
Image Sensor 5 MP 1/2.9″ Sensor (4230)
Chipset MStar337DE+4230
Effective Pixels 5MP
Min. Illumination Color: 0Lux (Warm light on)
IR Distance 40M (48 IR LED)
Lens 5MP LENS M12 3.6mm F1.2 fixed lens
Noise Reduction 3D digital noise reduction
WDR Support WDR , >80db
BLC Support
Compression H.264, H.265+
S/N Ratio ≥50db(AGC closed)
Image Settings Support for brightness, contrast, saturation, white balance, AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure); support privacy area; normal / 90° / 270° image rotation; Automatic, manual color to black and other switches
OSD Support OSD setting, drag the position freely
AUDIO / VIDEO ENCODING
Encoding Format H.265 Main Profile Encoding; H.264 Baseline / Main Profile / High Profile Encoding
Image Resolution Main Stream 2592X1944 ; 2560X1440, 2048X1520, 2304X1296,1920×1080 ,720P
Sub Stream D1(704*576) /VGA, 360P(640*360 ) / CIF(352*288)
Frame rate 5MP(25fps 50HZ/60Hz), 4MP(25fps 50HZ/60Hz) FULL 25 FPS
Video Bit Rate 32Kbps-3Mbps continuously adjustable, support CBR / VBR
Overlay Channel name, date time, steam info; position is adjustable.
DATA TRANSMISSION & STORAGE
Data Storage Video, Image
Storage Manual, automatic (cycle, timing, alarm switch, motion detection)
Alarm Data FTP, E-mail, Browser, Management software
Protocol HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS and etc.)
Access Standard ONVIF SDK
Access protocol Support ONVIF/private protocol/CGI
Client Browse Support IE9.0 and above browser, support 4 users concurrent access (MAX)
PORT
Network RJ45, 10M/100M network adaptive
Wifi NO
AUDIO
Audio G.711U
Input 1CH In
Output 1CH oUT
GENERAL
Operation T/H -20°C ~ 65°C / 0% – 90%
Waterproof IP66
Power Supply DC12V 2A
Power Consumption <10W
