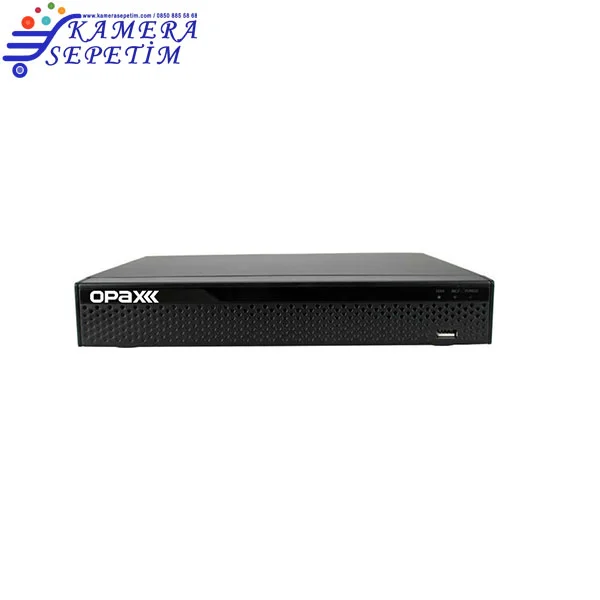

Opax OPAX-4044 4 Kanal XVR Kayıt Cihazı

  • TL: 0,00 ₺

Paylaş:

OPAX-4044 4 KANAL 1 HDD H.264 AHD 5 IN 1 XVR KAYIT CİHAZI
4 Kanal H.264 5 IN 1 XVR 1080N
– AHD / CVI / TVI / IP / Analog Kamera Destekler
– HD 1080N ve IP 1080P Kayıt çözünürlüğünü destekler
– HDMI, VGA ve BNC Video Çıkışı
– 4 Kanal HD veya 9 Kanal IP Kamera Giriş Desteği
– 1 Adet SATA HDD Maksimum 6TB Kapasite
Analog: 4*1080P
Analog+Network: 2*Analog(1080P)+4*network
Network: 9*1080P/960P/720P(Total incoming bandwidth ≤46M)

Model NO OPAX-4044
System Main Processor HI3520DV200
Operating System Embedded LINUX
Video Hybrid Mode Analog: 4*1080N
Analog+Network: 2*Analog(1080N)+4*network
Network: 9*1080P/960P/720P(Total incoming bandwidth ≤ 46M)
Input 4 CH BNC
Signal Type Analog / AHD / CVI / TVI 2.0 / Network
Output 1 HDMI, 1 VGA, 1 CVBS
Audio Input 4 Channel, RCA
Two-way Audio NO
Output 1 Channel, RCA
Alarm Sensor Input NO
Output NO
Motion Detection 4 Channel (max 9 Channel in pure network mode)
Trigger Events Recording, Email, Screen tips, Buzzer
Email Alarm Send Image to The Designated E-mail
PTZ Interface RS485
Protocol Pelco-D, Pelco-P
Baud Rate 110~921600
Address 0~255
Display VGA 1920×1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI 1920×1080P/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Display Split 9 Channel / 4 Channel / 1 Channel
Privacy Masking 1 Rectangular Zones (Each camera)
OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording Video Compression H.264
Audio Compression G.711u
Resolution Half 1080P(960×1080); 720P(1280×720); 960H(P:960×576/N:960×480)
Video Quality worst / worse / ordinary / well / best
Record Rate Analog: Half 1080P(960×1080 4*25fps),720P(1280×720 4*25fps), 960H(P:960×576 4*25fps/N:960×480 4*30fps)
Pure IP: PAL :1080P@9x25fps, 960P@9x25fps, 720P@9x25fps, D1@9x25fps
NTSC: 1080P@9x30fps, 960P@9x30fps, 720P@9x30fps, D1@9x30fps
Record Mode Manual Timer Motion Detection Alarm
Playback & Backup Decode Capability 2CH 1080P@30fps
Sync Playback Pure Analog: 4CH 1080N@25fps
Mixture mode: 1CH 1080P@30fps+1CH 1080N@25fps
Pure Network: 2CH 1080P@30fps, 3CH 960P@30fps, 4CH 720P@30fps
Remote Playback 1 Channel
Search Mode All, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback 4 Channel
Backup Mode USB Device / Network
Network Interface 1 RJ45 10M / 100M Adaptive Ethernet Interface
Network Functions HTTP, IPv4, IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
DDNS Dyndns, Changeip, No-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows 7/ Windows 8/Windows 10
Extra Stream CIF(1~25fps)
Smart Phone iPhone, ipad, Android ,Android pad
Hard Disk Driver Interface Type 1 SATA Interface
Capacity 1 SATA Hard Disk Interface (3.5″ SATA, Up to 6TB)
General Language Türkçe, Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
UTC Control YES
USB Interface 2 USB 2.0 Interfaces
Power Consumption DC 12V ≤6 W (Without Hard Disk)
Working Environment -10~55°C / 10~90%

OPAX-4044 4 KANAL 1 HDD H.264 AHD 5 IN 1 XVR KAYIT CİHAZI
