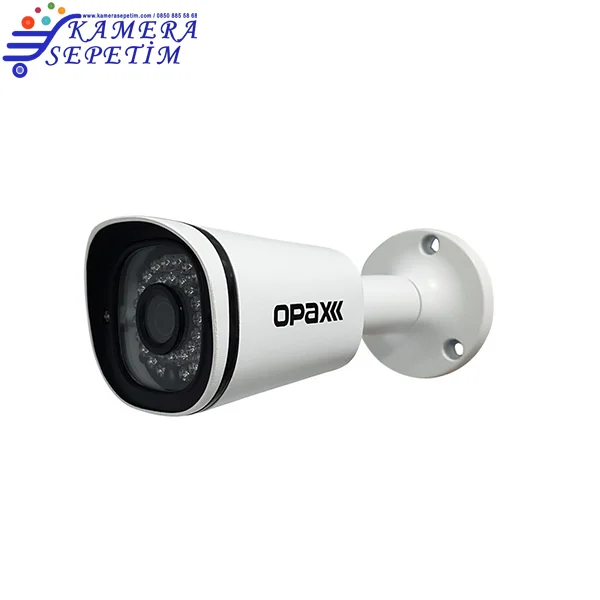

Opax OPAX-3525P 3MP IP POE Bullet Kamera

  • TL: 0,00 ₺


• 1/2.7 inch low illumination CMOS sensor;
• Support 2 channels of video and 1 channel of audio, two channels independent, 25 frames per second active video;
• H.264/H.265/H.265+ video compression standard, G.711/G711A audio compression standard;
• Support intelligent analysis, accurate humanoid detection, support area detection,
• Support smart dual light, infrared, warm light full color
• Support the human figure to receive light and prevent the face from exploding;
• Support wide dynamic range, backlight compensation, strong light suppression, digital noise reduction and image flip;
• Support DHCP, easily realize dynamic IP address;
• The video bit rate is continuously adjustable from 50Kbps-6Mbps, and the frame rate (5-25) is continuously adjustable;
• 10/100M Ethernet interface support;
• Support sound linkage alarm and voice customization;
• Support regular maintenance function;
• Support OSD customization;
• Support mobile phone monitoring (P2P Danale);
• Support auto focus and PTZ
• Dahili POE Modülü

Model OPAX-3525P
SOC Mstar SSC335
Image sensor 1/2.7″ low illumination 3MP SC3335
Minimum illumination Color 0.01 Lux
SNR >=38dB
Video processing PAL/NTSC video standard chooseable, support AWB, support 3D DNR, support WDR, support anti-face overexposing, support defog function, H.264/H.265/H.265+ coding format, achieve ultra-low storage, code rate/frame rate adjustable
Image resolution Main stream: 3MP / 1080P / 960P / 720P @30fps
sub stream: D1 / VGA / 640*360 / CIF @30fps
support CBR/VBR
Audio processing Audio linear input/output, G711U/G711A encoding, support two-way voice intercom
Network interface 1x RJ45, 10/100m adaptive Ethernet interface, 2KV lightning protection design
Protocol support Support HTTP/RTSP/ DHCP/NTP/ONVIF/P2P network protocols, and GB28181, RTMP and many kinds of NVR protocols are optional
storage Not available
IO interface Supports electric zoom and auto focus interface, with zoom lens and zoom control board and zoom program
LED Board interface Support auto mode and passive mode, need compatible light board to work together
IRCUT interface Integrated IRCUT switching circuit, Auto / external / manual / timer to control IRCUT day/night mode
Business functions IE6.0 and above (device embedded Web Server) browser
Motion detection and OSD adjustable
Support safari, Chrome, FireFox, Opera, Edge browsers
Support access web page from mobile phone
JPEG screenshots
P2P cloud services (danale)
IP filters
provide the SDK (Windows, Android, Linux) development kit
Active infrared function
Active warm light function
automatic zoom (optional)
PTZ linkage
support voice alarm linkage and customizable alarm sound
Conventional parameters DC12V/POE,
Working temperature -30~70°C
